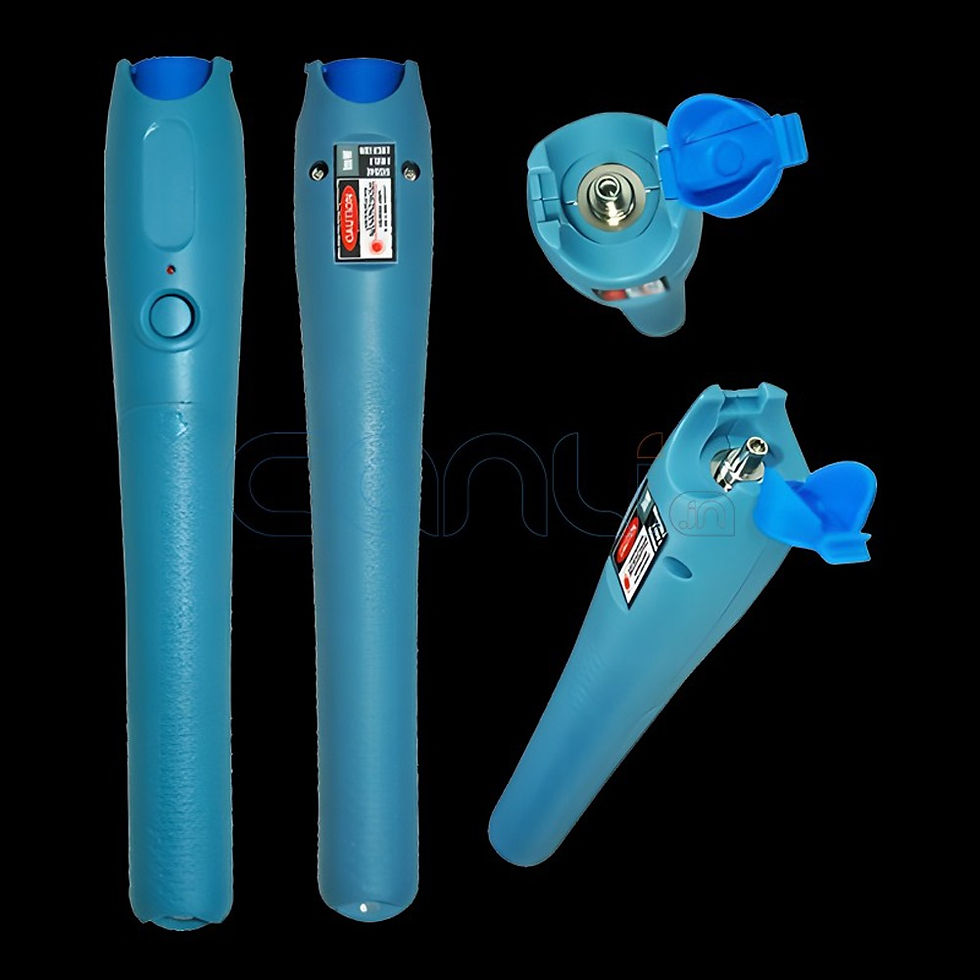

Visual Fault Locator
The Visual Fault Locator (VFL) is a compact and powerful fiber optic testing tool used to detect fiber breaks, bends, faulty connectors, and splices in optical fiber networks.It emits a bright red laser light (650 nm) that travels along the fiber, making faults visibly glow in the damaged area.The device is an essential part of any fiber optic maintenance or installation toolkit, suitable for SM (Single Mode) and MM (Multi Mode) fibers.
Key Features
650 nm visible red laser for fault detection
Compatible with both SM and MM fibers
Detects fiber breaks, bad splices, and tight bends instantly
Long-distance detection range up to 10–30 km (model-dependent)
Universal 2.5 mm connector fits SC, ST, FC interfaces
Continuous and modulated (flashing) light modes
Durable aluminum or ABS body for field use
Portable pen-type or handheld design
Battery operated for on-site convenience
Low power consumption and long battery life
Product Type
Visual Fault Locator (VFL)
Output Power
1 mW – 30 mW (as per model)
Detection Range
Up to 1 km – 30 km (depends on output power)
Fiber Type
Single Mode (SM) / Multi Mode (MM)
Weight
100 – 200 g (approx.)
Dimensions
180 × 25 × 25 mm (approx.)
